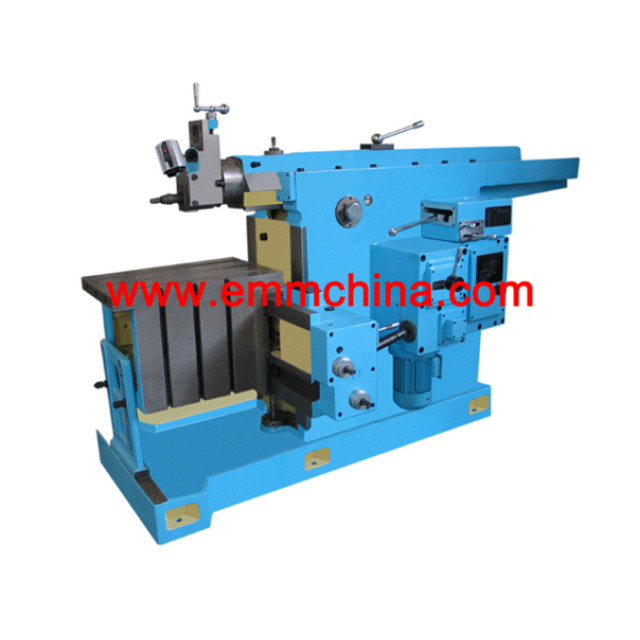

The machine is designed for cutting flat and formed surfaces on various kinds of small or medium sized workpiece.it can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.
|
Model |
B50E |
B63B |
|
|
Max. shaping length |
500 |
650 |
mm |
|
Max. range of the horizontal movement of the table |
525 |
630 |
mm |
|
Max. distance between the ram bottom and table |
370 |
380 |
mm |
|
Max. length of the vertical movement of table |
270 |
315 |
mm |
|
Dimensions of table top: length×width |
400*360 |
630*400 |
mm |
|
Max. stroke length of the toolhead |
120 |
120 |
mm |
|
Swivel angle of the toolhead |
±60ﾟ |
±60ﾟ |
|
|
Max. section of tool(W×H) |
20*30 |
20*30 |
mm |
|
Number of ram reciprocation per minute |
14-80 |
14-80 |
No./min |
|
Range of table feed:: horizontal vertical |
0.2-0.25/0.08-1 |
0.2-0.25/0.08-1 |
mm/recip |
|
Speed of rapid travel of table: horizontal vertical |
0.95/0.38 |
0.95/0.38 |
m/min |
|
Width of the T-slot for center positioning |
18 |
18 |
mm |
|
Power of the main motor |
3 |
3 |
KW |
|
Power of the motor for rapid travel of table |
0.55 |
0.55 |
KW |
|
Net weight (approx.) |
1800 |
2200 |
kg |
|
Dimensions of machine tool (Length×Width×High) |
2160*1070*1194 |
2382*1210*1504 |
mm |
